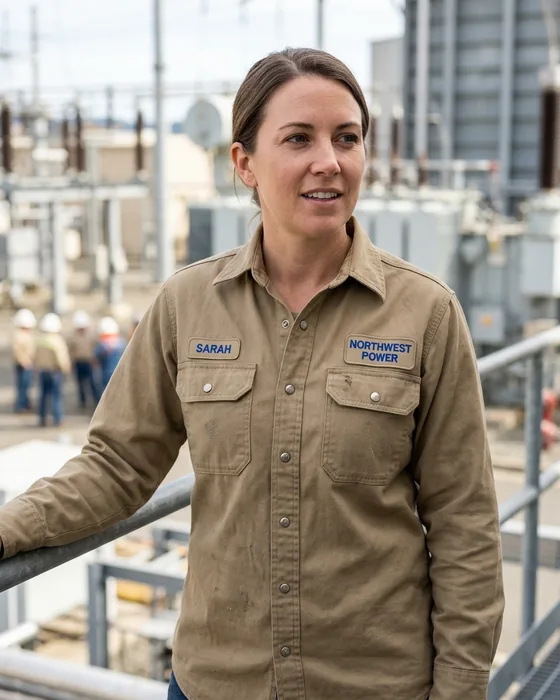

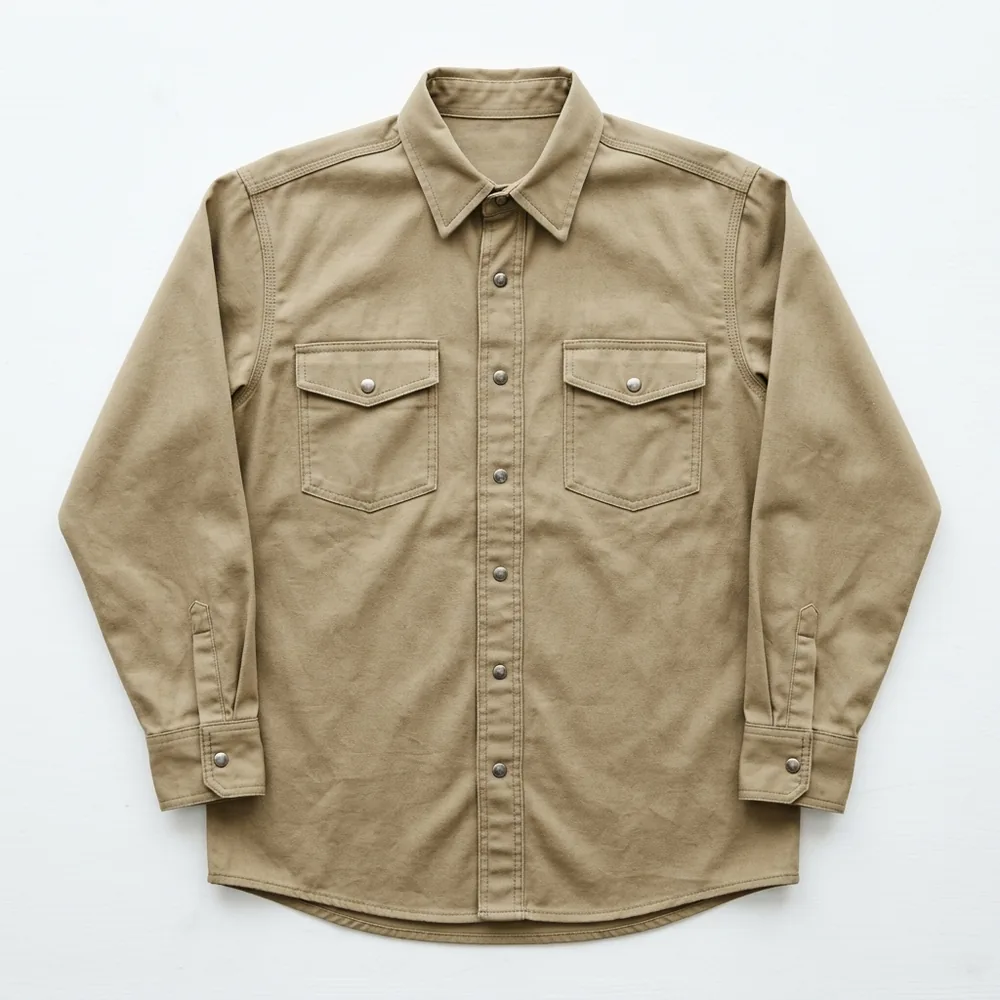

FR button-front work shirt
Snap or button front, long sleeve, one or two chest pockets.
FR clothing · cut, sewn & decorated in-house
FR Clothing Manufacturer for FR Shirts, Pants, Coveralls and FR Hi-Vis
Cut and sewn from FR fabric that carries the mill's test report. Thread, tape, logo thread and film, zippers, hook-and-loop and labels are FR too, each listed on one trim list per style that you sign.
For oil and gas, electric utility, welding and chemical plant crews, and for FR distributors under their own label.
FR compliance label
- Built to
- NFPA 2112 · ASTM F1506 / NFPA 70E
- Arc rating
- Fabric value as printed on the mill report
- Thread
- Meta-aramid, every seam
- Lot code
- Fabric lot · trim lots · line clearance
01By crew
FR Clothing by Crew: Oil and Gas, Utilities, Welding, Chemical Plants
You choose the standard your sites specify and the arc rating your hazard assessment calls for. The garment is built to it, with the documents your PPE approval file needs.
- 01NFPA 2112
Oil and gas crews
Drilling, production and refinery maintenance. Shirts, pants and coveralls for flash fire, with FR hi-vis near traffic and moving plant.
- 02ASTM F1506 / NFPA 70E
Electric utility and substation crews
Arc-rated shirts, pants and FR hi-vis, in the arc rating your hazard assessment names.
- 03Your site spec
Welding and fabrication shops
Shirts, cargo pants and coveralls in FR-treated cotton for sparks and hot metal.
- 04Site safety plan
Chemical and process plants
Coveralls and bib overalls for operators and maintenance crews.

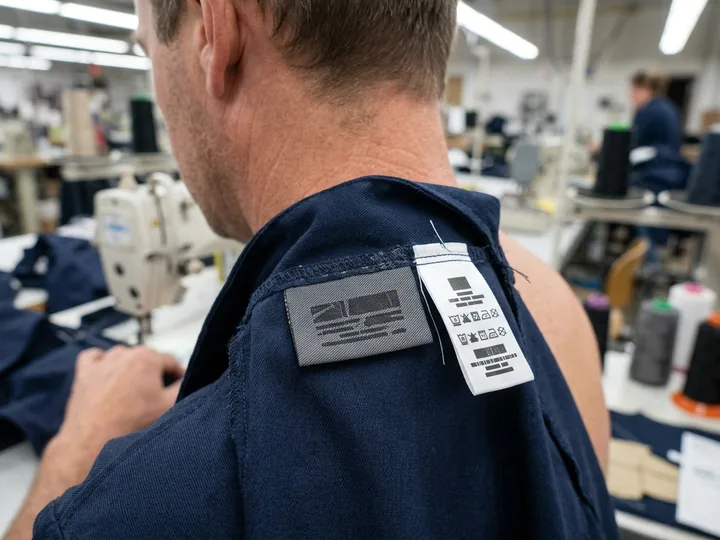

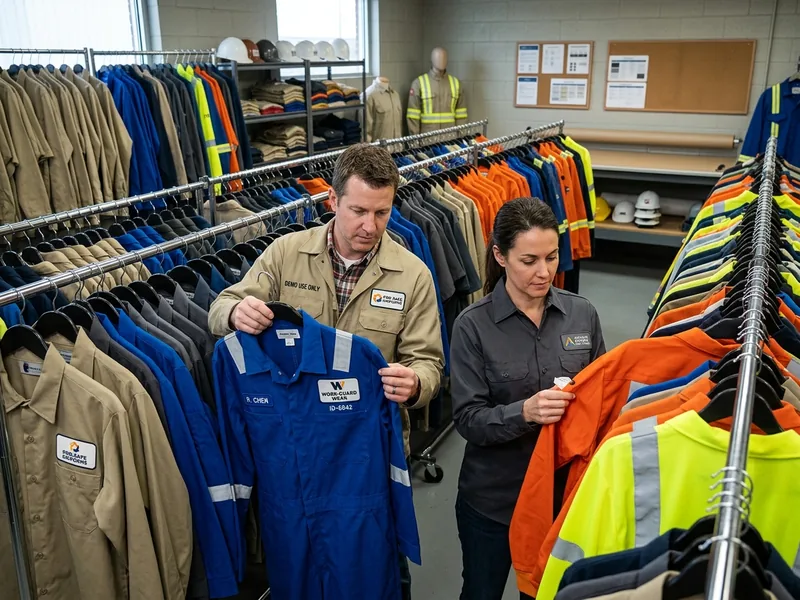

- 05Private label
FR distributors and uniform brands
Your neck labels and FR compliance labels, one signed trim list per style.
02Choosing
Six Choices That Set Your FR Build, From Standard to Wash Routine
- 01
Standard
- NFPA 2112 for flash fire; ASTM F1506 and NFPA 70E for arc flash; or both on one garment
- EN ISO 11612 and IEC 61482-2 for EU sites
- Sets which mill reports the fabric carries and what the label says
- 02
Arc rating
The FR fabrics offered carry arc ratings of 8–12 cal/cm², the value printed on the mill report; heavier fabrics or your specified fabric on request. The number from your EHS team goes on the label and into the document pack.
- 03
Fabric family
- FR-treated cotton and cotton/nylon: heavier, cotton feel
- Modacrylic/lyocell and aramid blends: lighter, for hot climates · compare fabrics
- 04
Garment
- Shirt and pants: layering, top and bottom sized separately
- Coverall or bib overall: one-piece cover
- Knit henley: base layer
- 05
Hi-vis or not
FR hi-vis uses FR fabric in fluorescent colour and reflective tape on an FR substrate, built to ANSI/ISEA 107 as well.
- 06
Wash routine
- Home or industrial laundry
- Industrial laundry adds the industrial-wash test on the logo and shapes the logo method
Each choice is confirmed before quoting and written into the style's build spec sheet.
03FR styles
FR Shirts, Pants and Coveralls: Eight FR Styles Including FR Hi-Vis
Men's and women's cuts, with FR hi-vis versions of the shirt, the coverall and the vest.

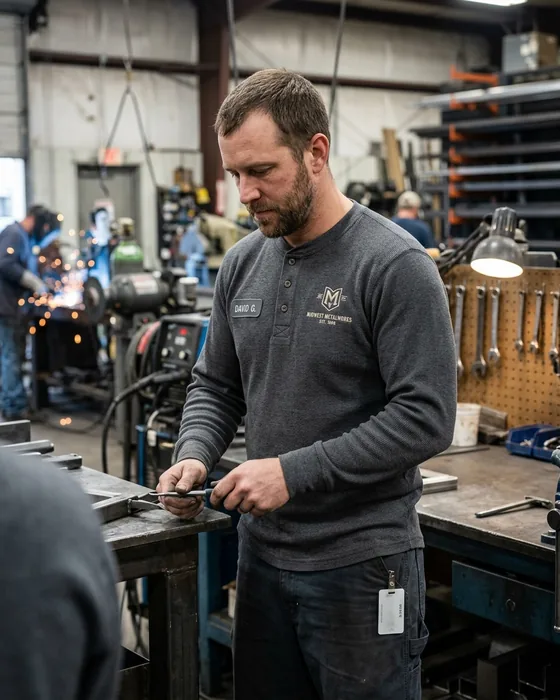

FR knit henley
Lighter base layer in inherent FR knit.

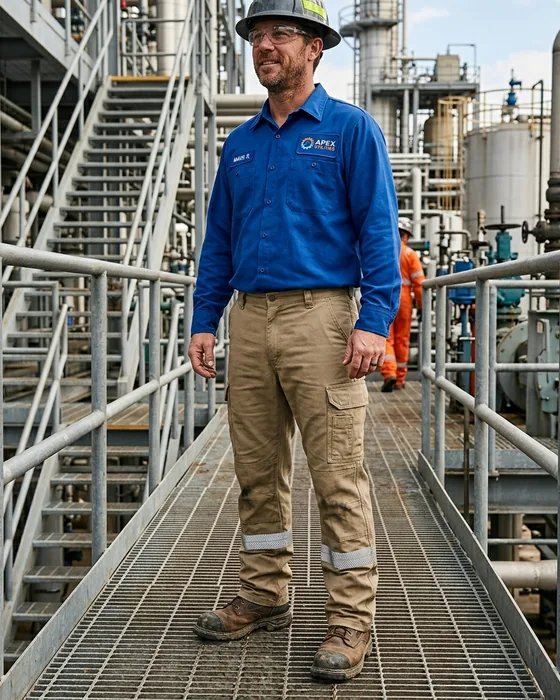

FR work and cargo pants
Flat-front and cargo styles, pocket bags in FR fabric.

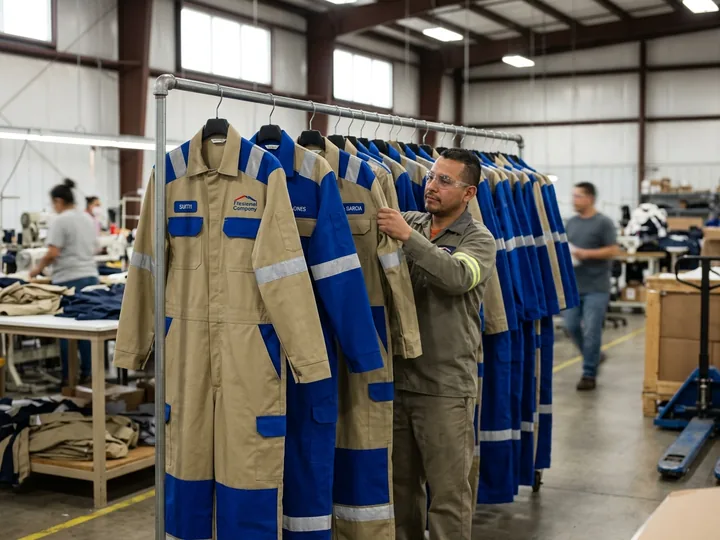

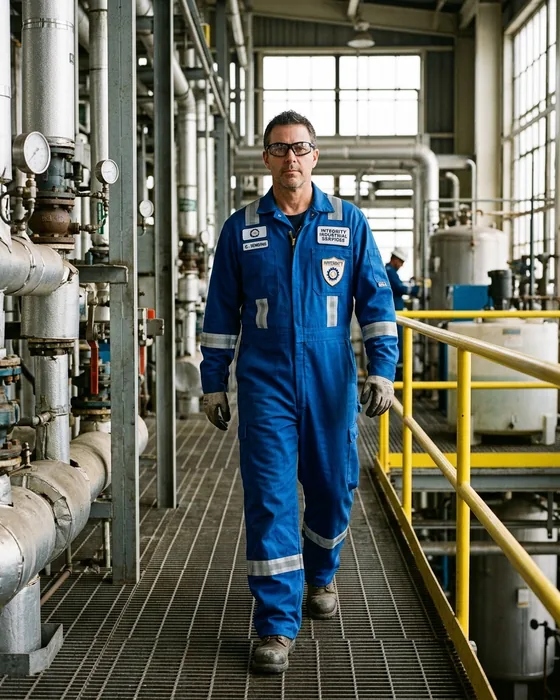

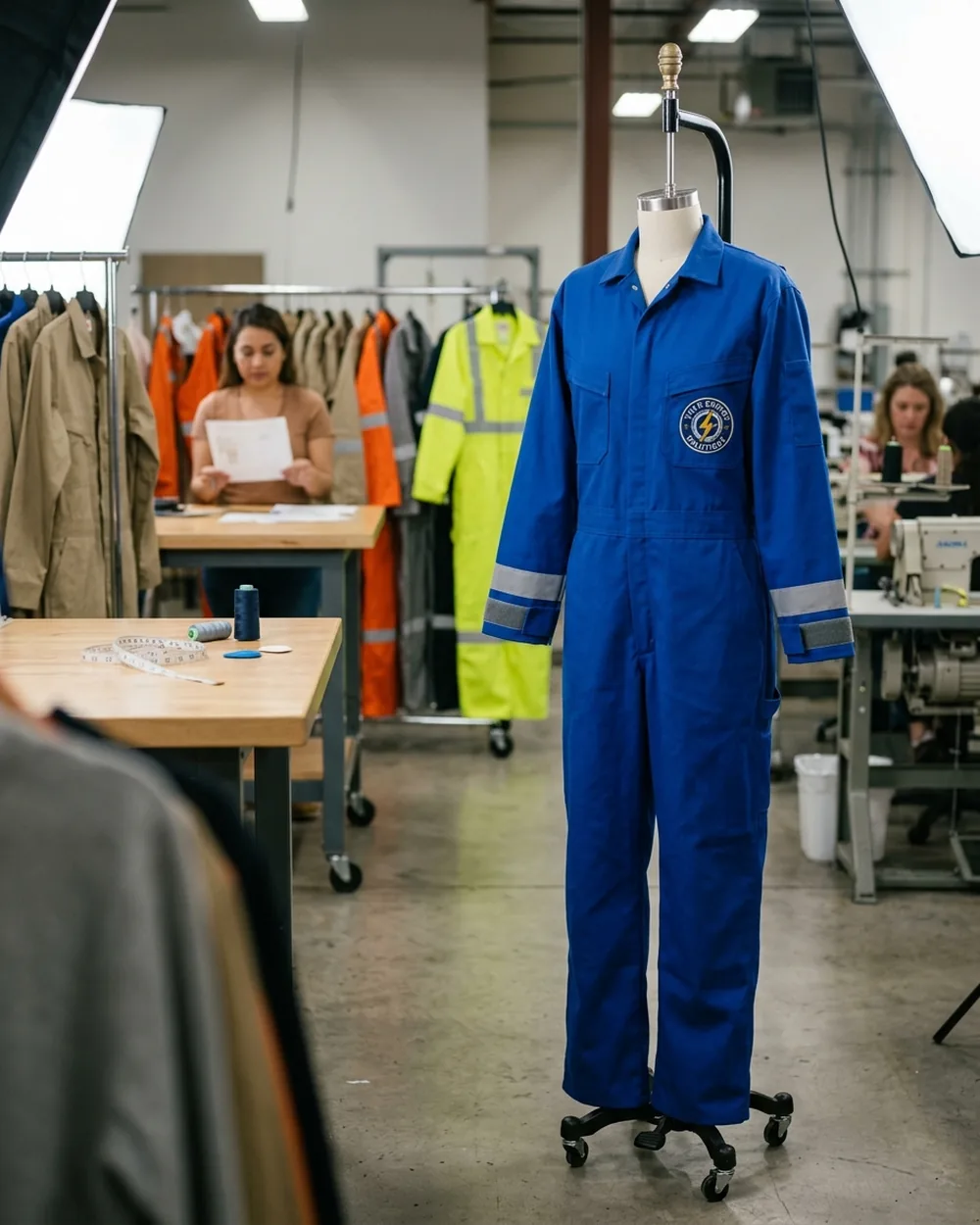

FR coveralls
Two-way brass zipper on FR tape, full-body cover in one piece.

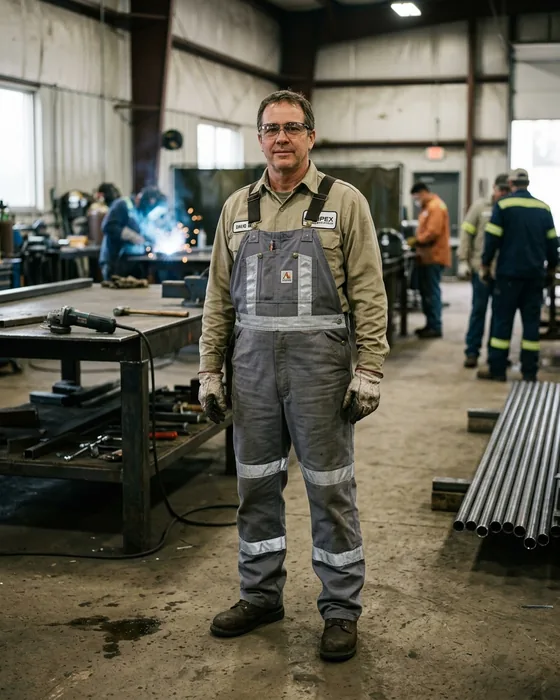

FR bib overalls
Worn over an FR shirt, cover from chest to boot.
FR hi-vis shirts
Fluorescent yellow-green or orange, tape on an FR substrate.

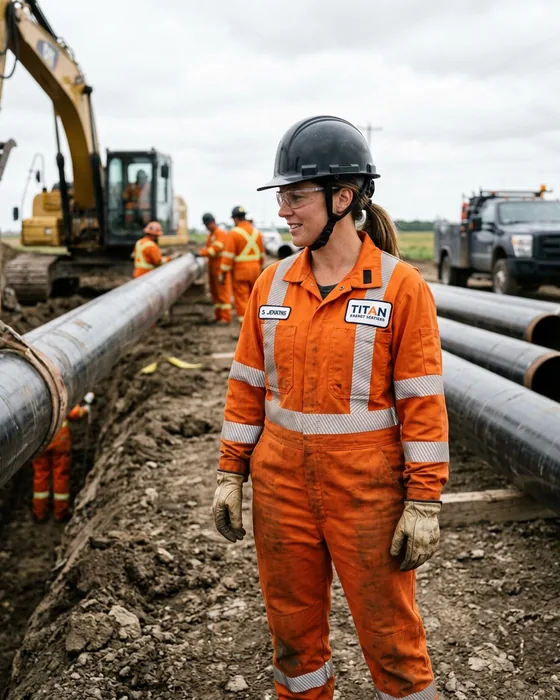

FR hi-vis coveralls
One-piece FR hi-vis for plant and field crews.

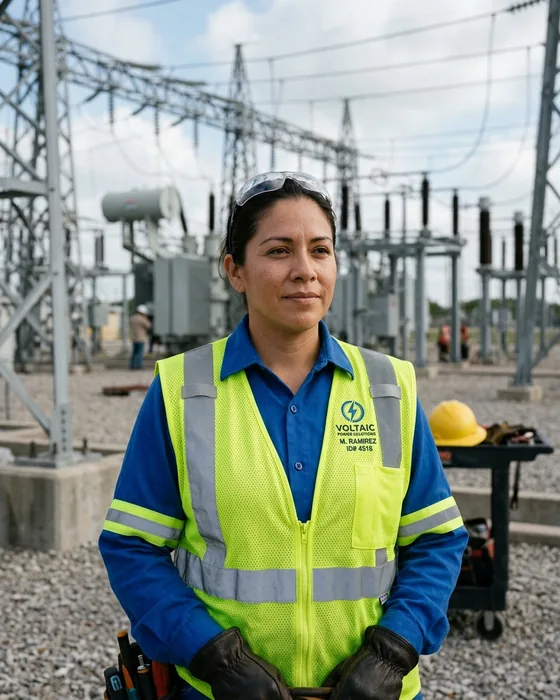

FR hi-vis vests
Class 2 to ANSI/ISEA 107 from FR fabric. Non-FR: safety vests.
04Components
Every Component on the FR Garment Is FR, Seam to Label
An FR shirt, pant or coverall is a dozen or more materials besides the main fabric. Each one is FR, and each one is a line on that style's trim list.

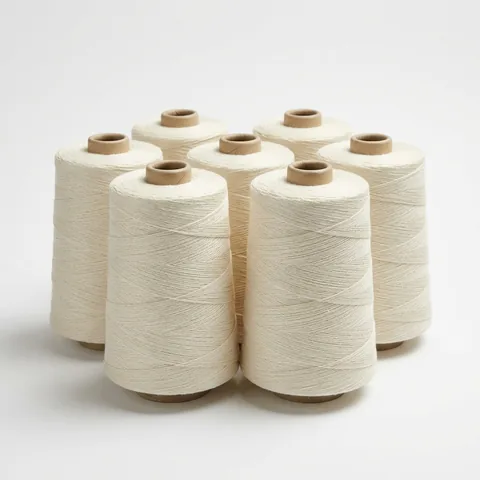

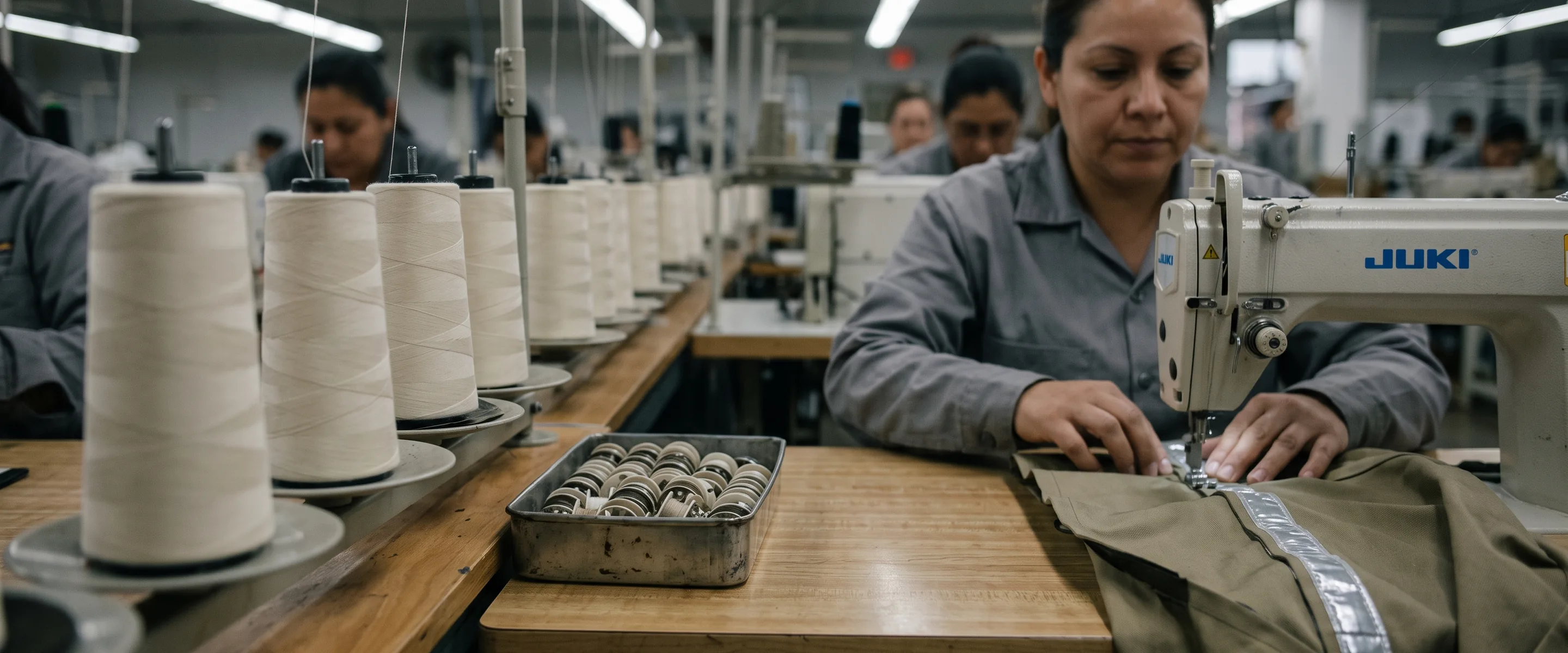

Sewing thread
Meta-aramid on every seam, buttonhole, bartack, hem and pocket.
FR · report on file

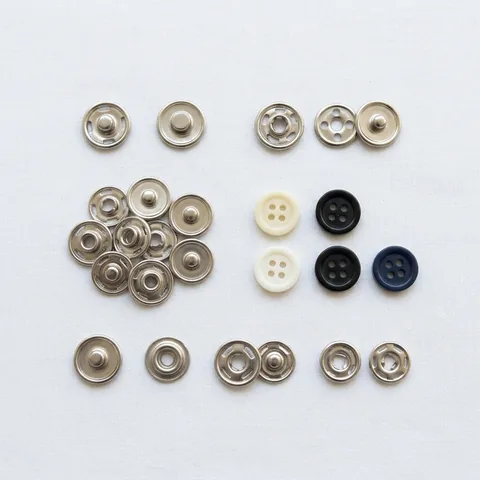

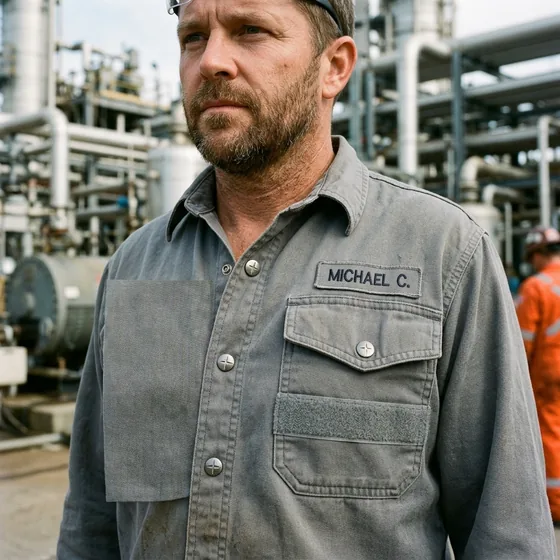

Snaps and buttons
Metal snaps on fronts and flaps; buttons listed with their supplier's FR report or declaration.
FR · report on file

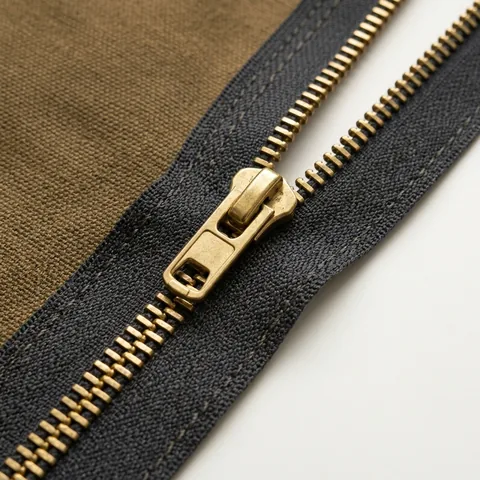

Zippers
Brass teeth on FR tape: coverall fronts, flies and leg openings.
FR · report on file

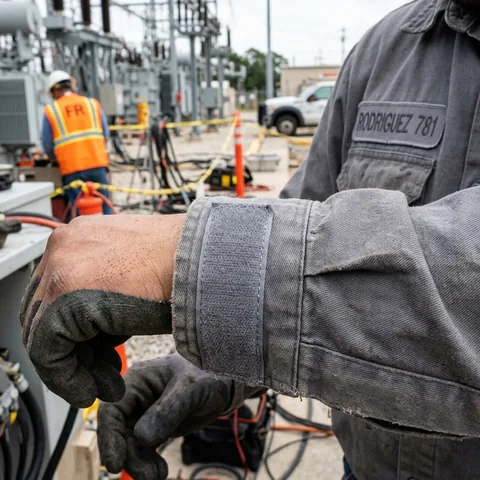

Hook-and-loop
Aramid, on cuffs, pocket flaps and storm flaps.
FR · report on file

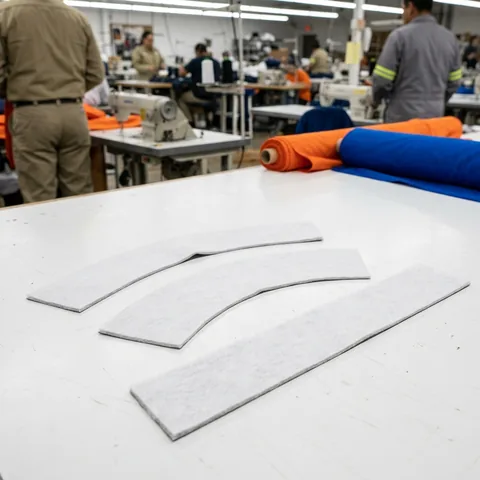

Interlining
FR interlining in collars, cuffs, plackets and waistbands, or self-fabric.
FR · report on file

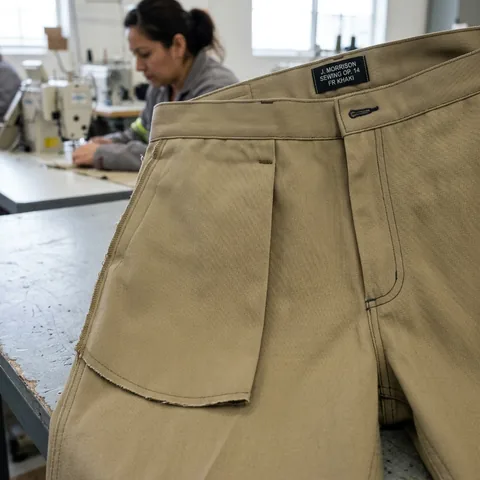

Pocket bags and facings
Cut from the same FR fabric as the garment.
FR · report on file

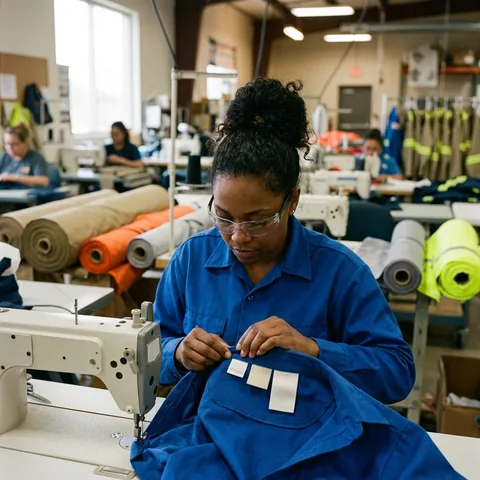

Labels
Neck, care and compliance labels on FR substrate, private label too.
FR · report on file

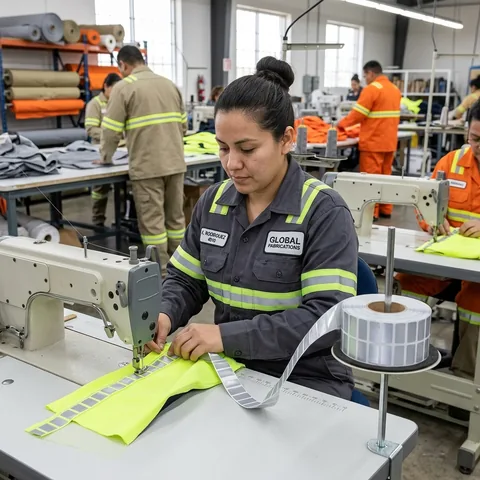

Reflective tape
Segmented, on FR substrate; heat-applied or sewn with meta-aramid.
FR · report on filePatches and logos: FR logo methodsEvery part goes on the style's trim list with supplier, item code and report before a panel is cut: the trim list
05FR trim list
One Signed FR Trim List per Style, Test Report Behind Every Line
The FR BOM sits inside the style's build spec sheet. The whole factory builds that garment from it.

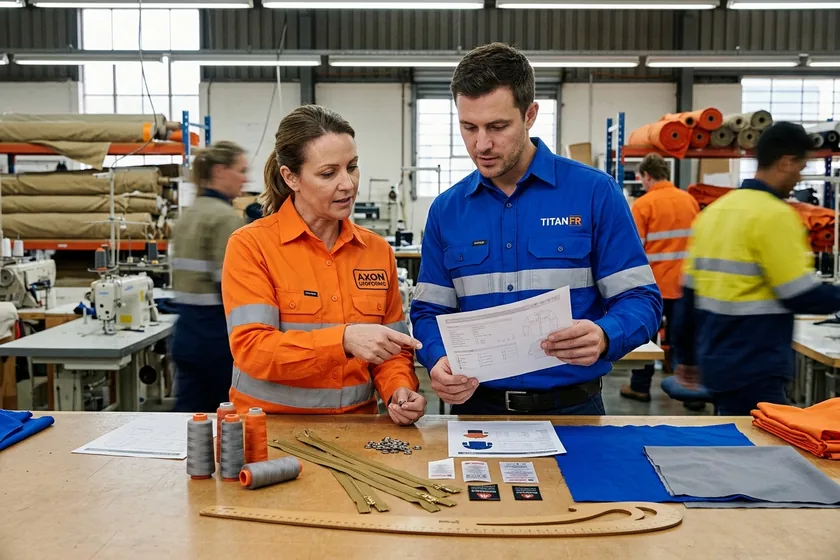

Drafted
By your account manager with the pattern room lead, down to the bartack thread and the pocket bag.
Checked
By the QC manager, every line against its FR test report or supplier declaration, before sampling. No report, no line. A part not yet held in FR is sourced and its report added first; you're told if the sample date moves.
Signed
By you, with the sample. From then on, the approved sample and the signed BOM are the reference for every check.
FR trim listStyle: FR snap-front shirtVersion 1
Each line also records the supplier, item code and colour.
| # | Component | On this style | FR evidence | QC |
|---|---|---|---|---|
| 01 | Main fabric | FR-treated cotton/nylon twill | Mill test report, per lot | |
| 02 | Sewing thread | Meta-aramid, every seam, buttonhole, bartack | FR test report | |
| 03 | Embroidery thread | Inherent FR thread | FR test report | |
| 04 | Embroidery backing | FR backing, or "no backing" | FR test report | |
| 05 | Transfer film | FR transfer film | FR test report | |
| 06 | Patch material | FR twill, aramid edge | FR test report | |
| 07 | Reflective tape | Segmented, FR substrate | FR test report | |
| 08 | Zipper | Brass teeth on FR tape | Supplier declaration | |
| 09 | Hook-and-loop | Aramid | FR test report | |
| 10 | Snaps or buttons | Metal snaps | Supplier declaration | |
| 11 | Interlining | FR interlining, collar and placket | FR test report | |
| 12 | Pocket bag fabric | Same FR fabric | Mill test report | |
| 13 | Neck label | FR substrate | Supplier declaration | |
| 14 | Care label | FR substrate · no chlorine bleach, no softener | Supplier declaration | |
| 15 | FR compliance label | FR substrate | Supplier declaration |
DraftedAccount manager
CheckedQC manager
SignedYou, with the sample
On the floor
Purchasing orders FR trims only from the signed list. Cutting, sewing and decoration draw only from the FR store.
When something changes
A new logo, zipper, label or thread supplier, or a supplier's own item-code change, opens a new version. Same check, you sign, the old version stays on file.
Re-orders
Built from the signed BOM on file: same components, same suppliers.
You receive
The signed BOM with every report or declaration attached. Distributors pass it on to their customers.
Polyester thread stays on the standard workwear lines. Every FR seam is sewn in meta-aramid.
06Logos on FR
Logos on FR Garments: FR Embroidery Thread, FR Transfer Film, FR Patches
Logos and employee names go on in the same factory, on the 120 embroidery heads and 8 heat presses used across every uniform program, with FR materials.

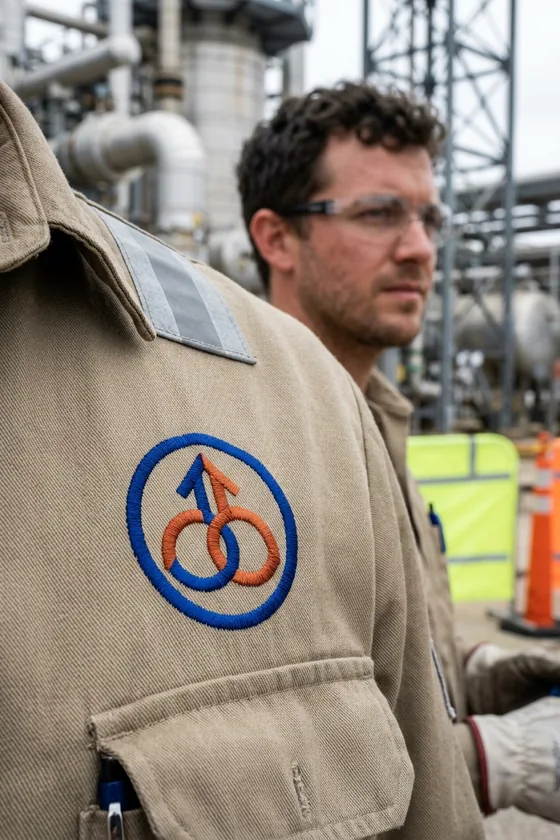

Inherent FR embroidery thread
FR backing, or no backing where fabric and design allow. Polyester thread and standard backing are kept off FR orders.

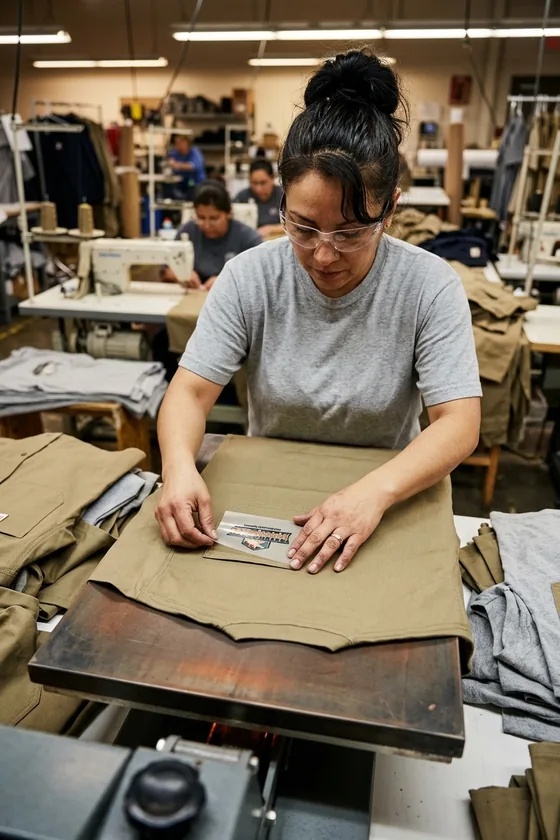

FR transfer film
Multi-colour logos, fine detail, back logos. Temperature, dwell and pressure set on the first piece for each style and FR fabric, because treated cotton, cotton/nylon and aramid blends take heat differently.

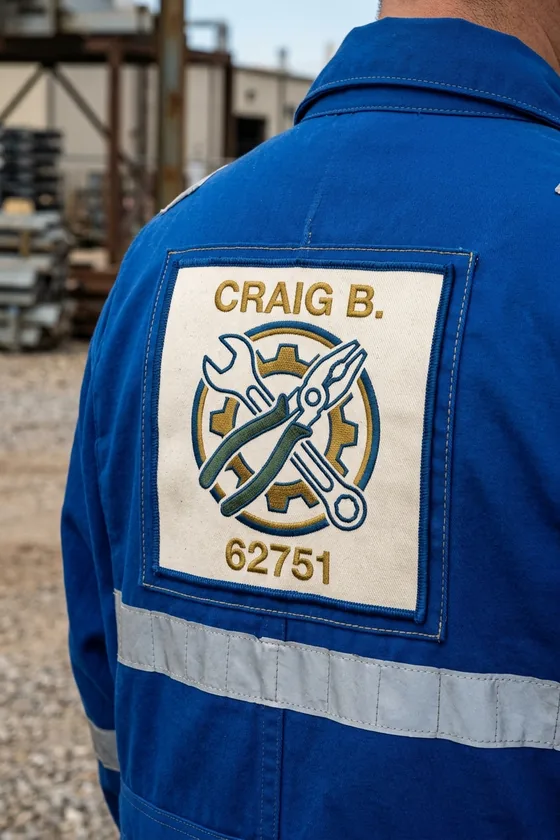

FR twill patches
Edged with aramid thread, sewn on with meta-aramid.
No screen printing on FR builds
Logos that would be printed on a standard garment are made as FR transfer or embroidery.
Sizes
Chest embroidery up to 4 in / 10 cm wide. Back logos as FR transfer or patch up to 12 × 4 in / 30 × 10 cm; no full-back transfers. On FR hi-vis the logo sits on background, never on tape: area check.
Set-up recorded
Digitizing file, backing, stitch density, thread colours and press settings kept with your program. Each logo's thread, film or patch is a line on the trim list.
First piece and wash test
First piece off every machine and press checked against the sample. Industrially laundered programs: ISO 15797 50-cycle test before bulk release. Method and pass criteria
07Which build

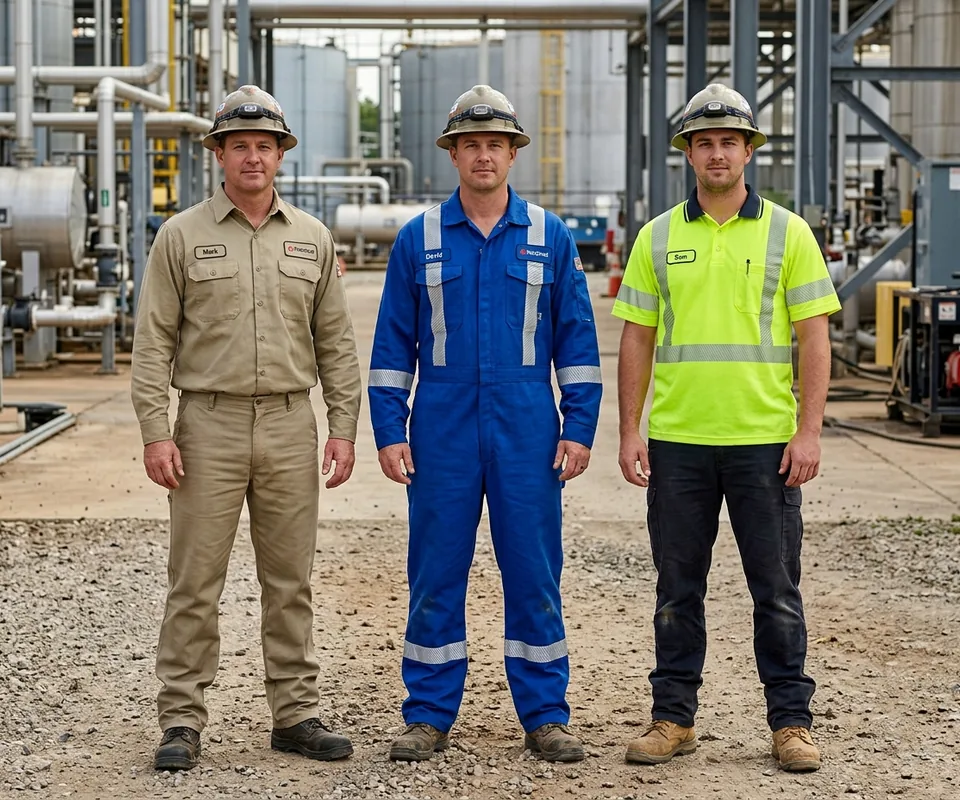

FR Shirt vs FR Coverall vs FR Hi-Vis vs Standard Work Shirt
Three FR builds on this page, and two builds for crews with no flame or arc exposure.
- FR · this page01
- FR · this page02
- FR · this page03
- Non-FR04
- Non-FR05
08Line clearance

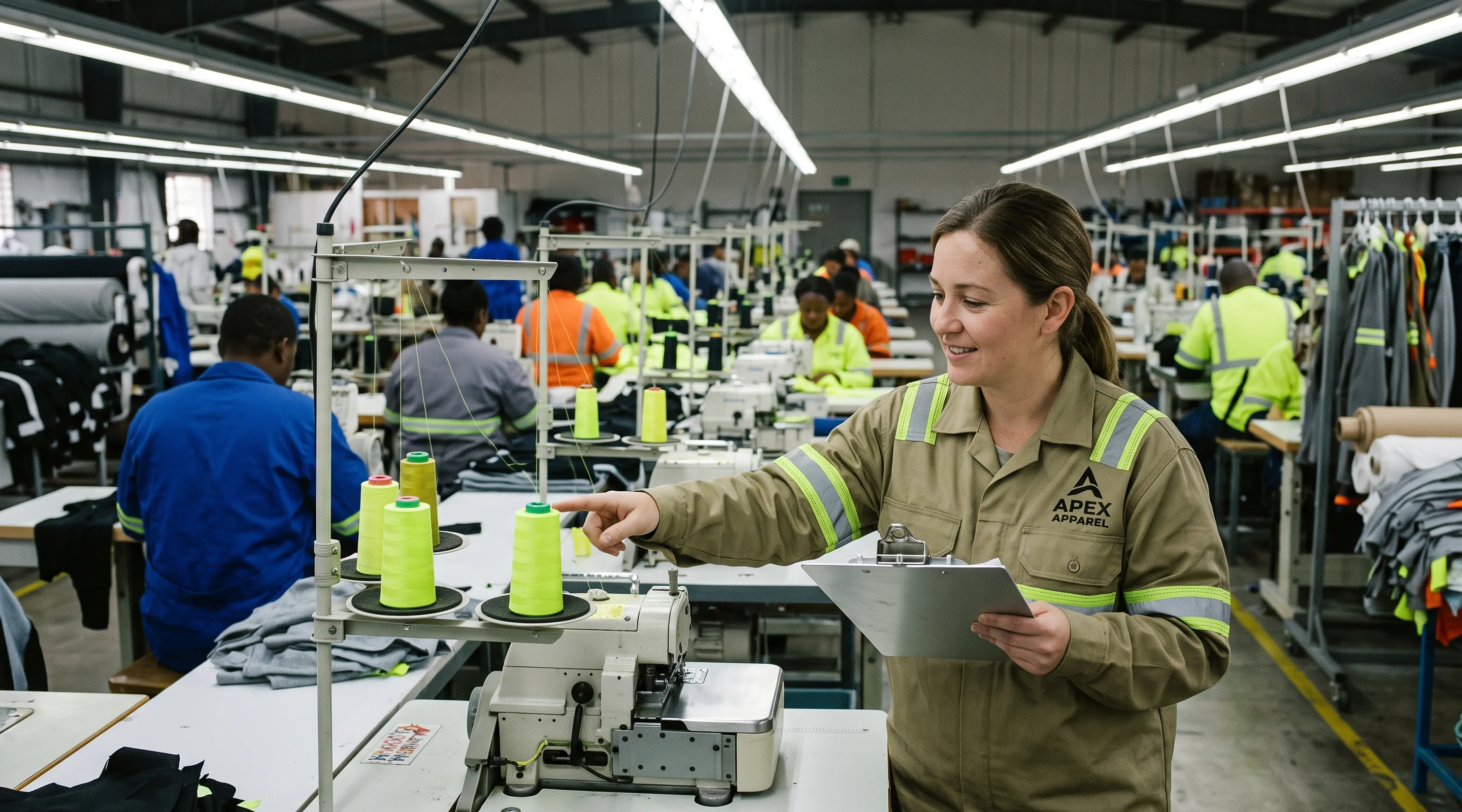

FR Line Clearance: Non-FR Thread Off the Line Before Every Run
Sewing lines and embroidery machines also make standard workwear, so a fixed clearance runs every time an FR order starts on a line or a machine.
Line-clearance check · FR order
- Non-FR thread cones off every machine on the line
- Overlockers, bartack and buttonhole machines included
- Bobbins emptied and refilled with meta-aramid
- Non-FR trims and labels off the line
- Label station holds FR labels only
- Embroidery needles re-threaded with inherent FR thread
- Standard backing removed from the station
- Signed by line QC before the first FR panel is sewn
The signed check is kept with your order and goes into your document pack.
The FR store
Separate and tagged. Nothing enters without the BOM check, and FR orders draw only from it.
First piece
From each line and each embroidery machine, checked against the sample and the BOM: seam thread, zipper, hook-and-loop, snaps, labels, logo material. The run continues after line QC signs.
During the run
Every inline check includes a BOM match. Cones and trims arrive from the FR store with their lot tags.
A non-FR part found
The piece is held and remade from a new cut panel, never unpicked and re-sewn. The QC manager sets how far back the check goes, and every piece since is inspected. If your ship date moves, your account manager tells you within 24 hours.
The lot code on the label leads back to the fabric lot, the trim lots and this check.
09Production
FR Garment Production in Eight Steps, Mill Report Check to Release
The path an FR order takes through the factory. Three steps open into their own sections on this page.
- 01
Fabric receiving
Mill report checked against the standard and arc rating on your spec sheet.
- 02
Trim receiving
Each lot checked against the signed BOM, then into the FR store.
- 03
Line clearance
Signed before the first panel. The check
- 04

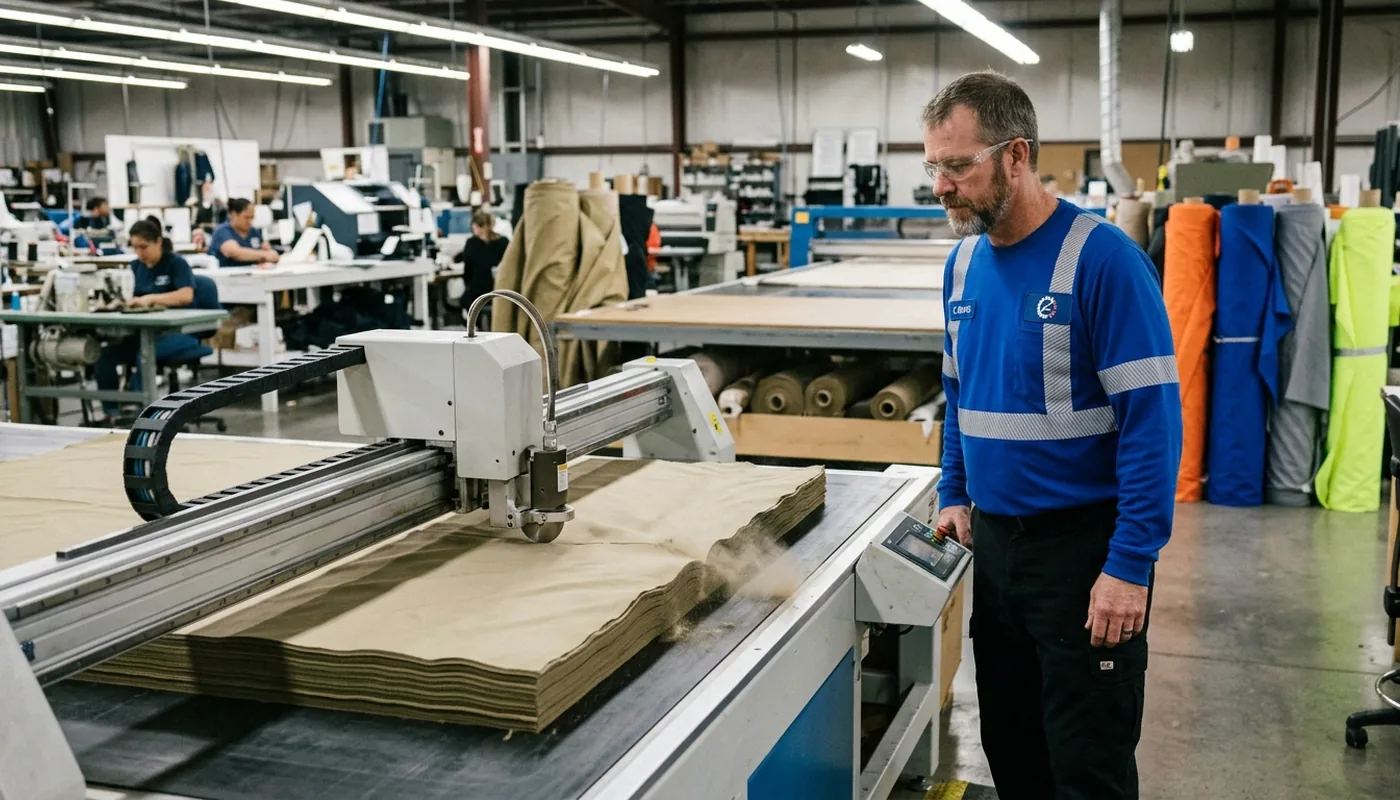

Cutting
Automatic multi-ply tables from your CAD marker; pocket bags from the same FR fabric.
- 05
Sewing
Meta-aramid on every seam; trims drawn from the FR store only.
- 06
Decoration
FR thread, FR film or FR patches. Logo methods
- 07
Labelling
Standard, arc rating as printed on the mill report, fibre, size, lot code, care.
- 08
Inspection and release
Against sample, spec sheet and BOM. What's checked
Send the FR Garment Your Crews Wear Today
Or the standard and arc rating on your site spec.
- 01
Written quote
- 02
Sample plan
- 03
The FR trim list proposed for each style
10FR fabrics
FR Fabrics: Treated Cotton, Cotton/Nylon, Modacrylic Blends, Aramid Blends
Bought from mills that test each fabric lot and supply the report with it. Hover a swatch to see the weave.
240–300 gsm

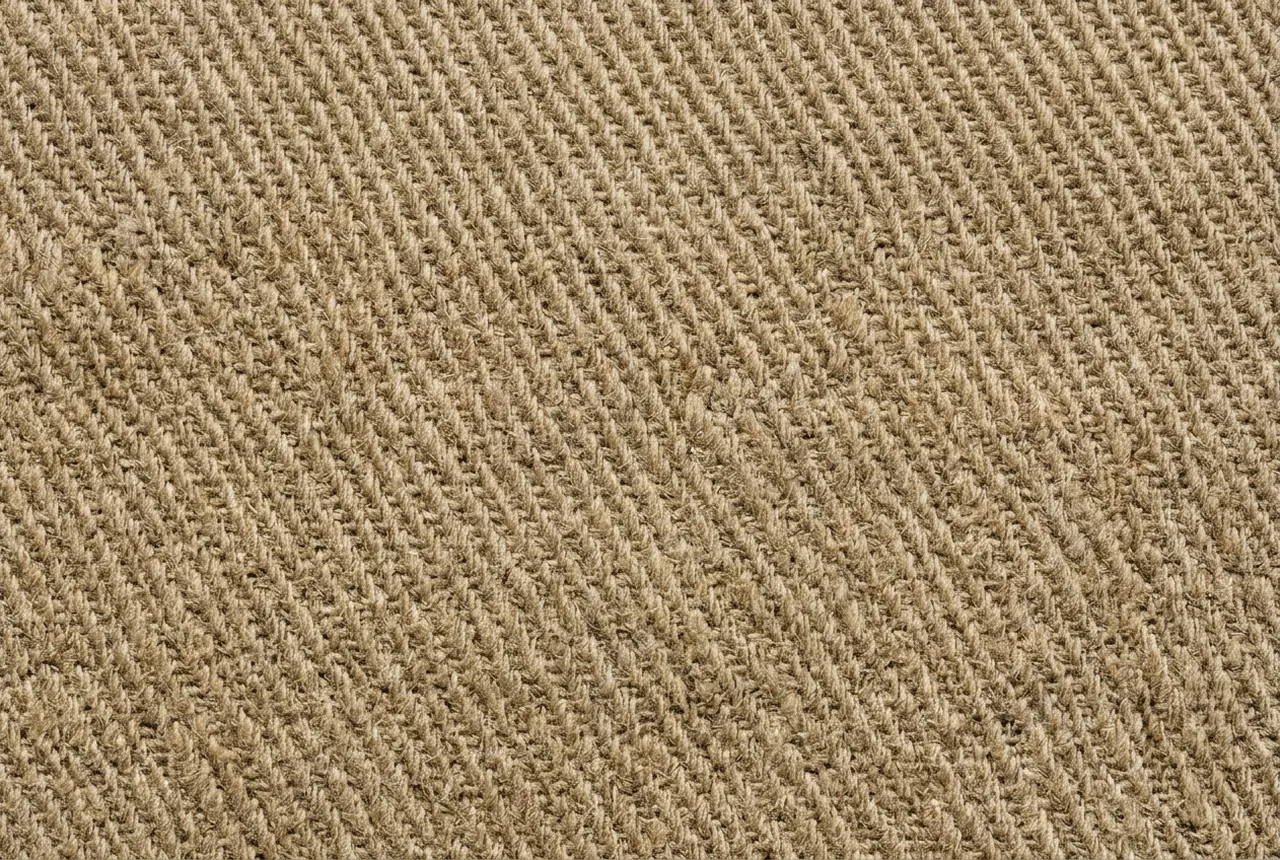

FR-treated 100% cotton
Cotton feel and a heavier hand, for welding, fabrication and plant work.
200–240 gsm

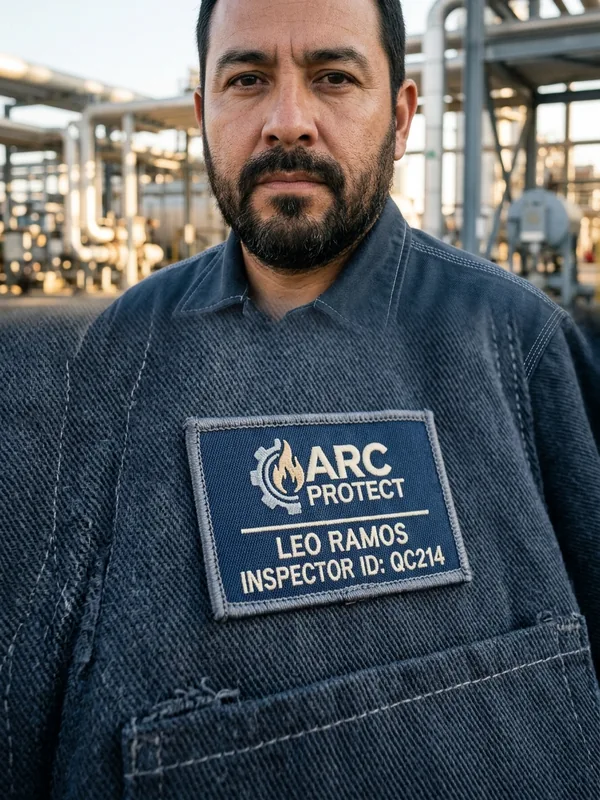

FR-treated 88/12 cotton/nylon
Nylon adds abrasion resistance; daily shirts, pants and coveralls.
185–220 gsm

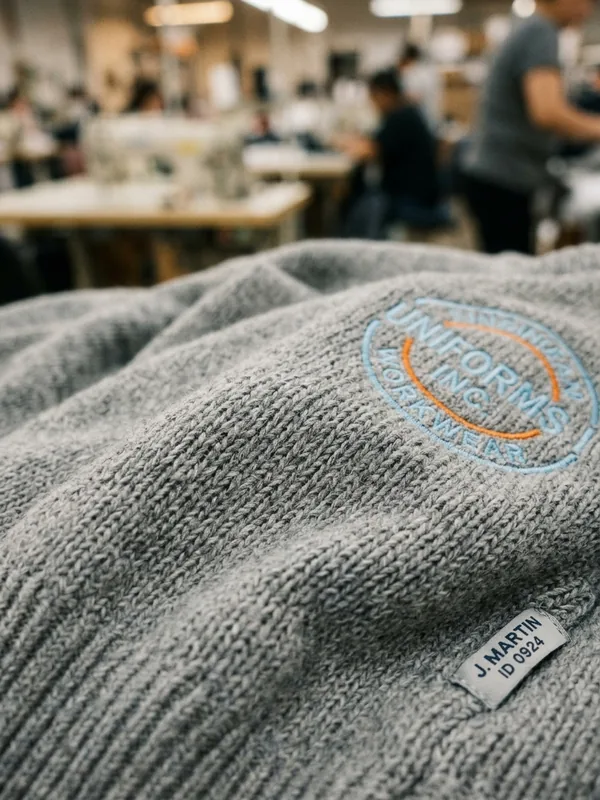

Inherent FR modacrylic / lyocell
Lighter and softer; shirts and henleys for hot climates.
Your specified fabric
Send the fabric name or a swatch. The quote is made on that fabric, with the mill's report on file for every lot.
Colour
Navy, royal blue, khaki, grey and orange; fluorescent yellow-green for FR hi-vis. Other colours depend on the mill. Approved colours are kept as a retained lab dip and matched on fabric before cutting.
150–200 gsm

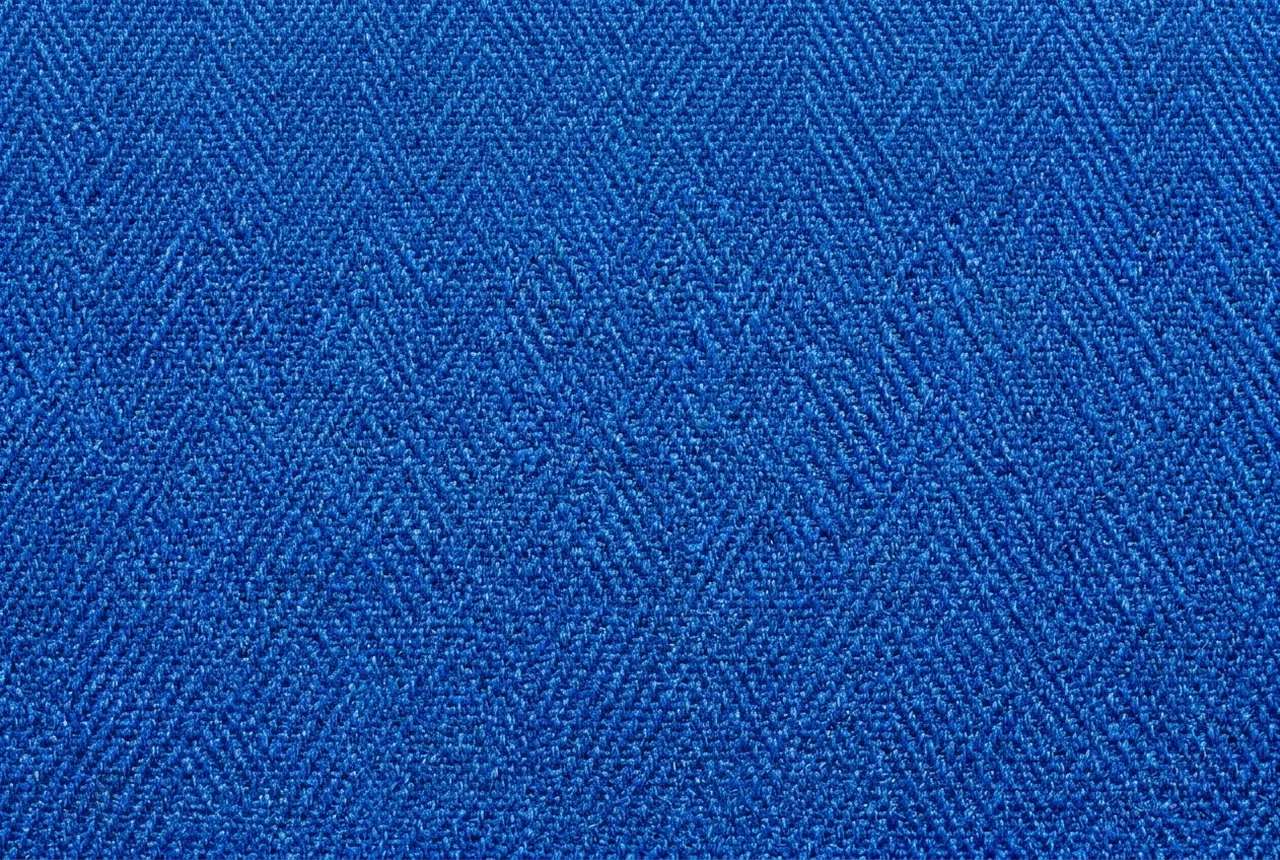

Meta-aramid / para-aramid blends
The lightest of the four for the same job; coveralls and shirts where weight matters.
11Specifications
FR Clothing Specifications: Thread, Closures, Sizes, Colours, Logos, Labels
| Build | |
|---|---|
| Standards | NFPA 2112 · ASTM F1506 · NFPA 70E for US sites · EN ISO 11612 · IEC 61482-2 for EU sites · ANSI/ISEA 107 on FR hi-vis |
| Styles | Shirt, henley, pants, coverall, bib overall, FR hi-vis shirt, coverall and vest · styles |
| Materials | |
| Fabric | Four FR fabric families · fabrics |
| Sewing thread | Meta-aramid on every seam, buttonhole and bartack |
| Closures | Metal snaps · brass zippers on FR tape · aramid hook-and-loop |
| Reflective tape | Segmented, on an FR substrate (FR hi-vis) |
| Fit | |
| Sizes | XS–5XL · men's and women's cuts · tall sizes on core styles |
| Pockets | One or two chest pockets with flaps · pen and radio pockets · cargo pockets on pants |
| Decoration | |
| Logo methods | Inherent FR embroidery thread · FR transfer film · FR patches · employee names in FR thread |
| Logo sizes | See logos on FR |
| Labels and packing | |
| Labels | FR compliance label and neck label on FR substrate · your private label on request |
| Care | No chlorine bleach, no fabric softener |

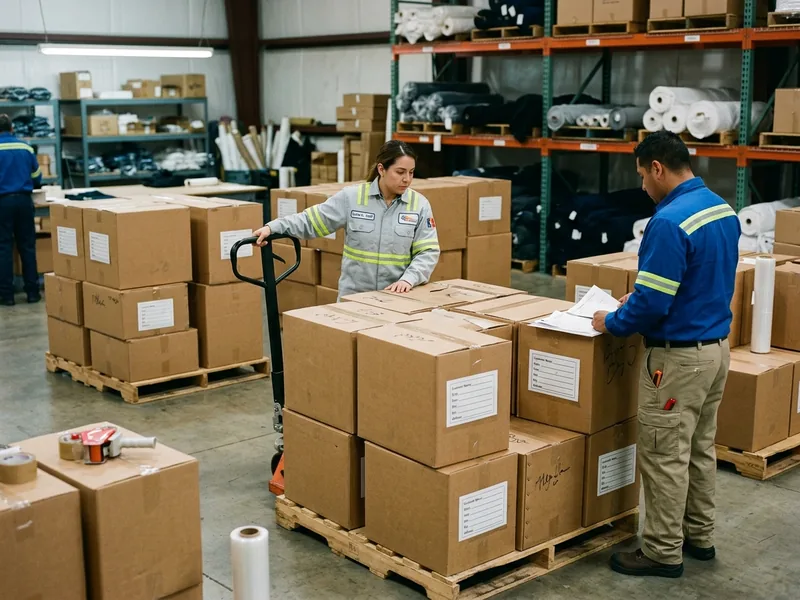

| Packing | Each garment in its own polybag with a size sticker · cartons by size or by person · carton labels with PO, style, colour and lot |

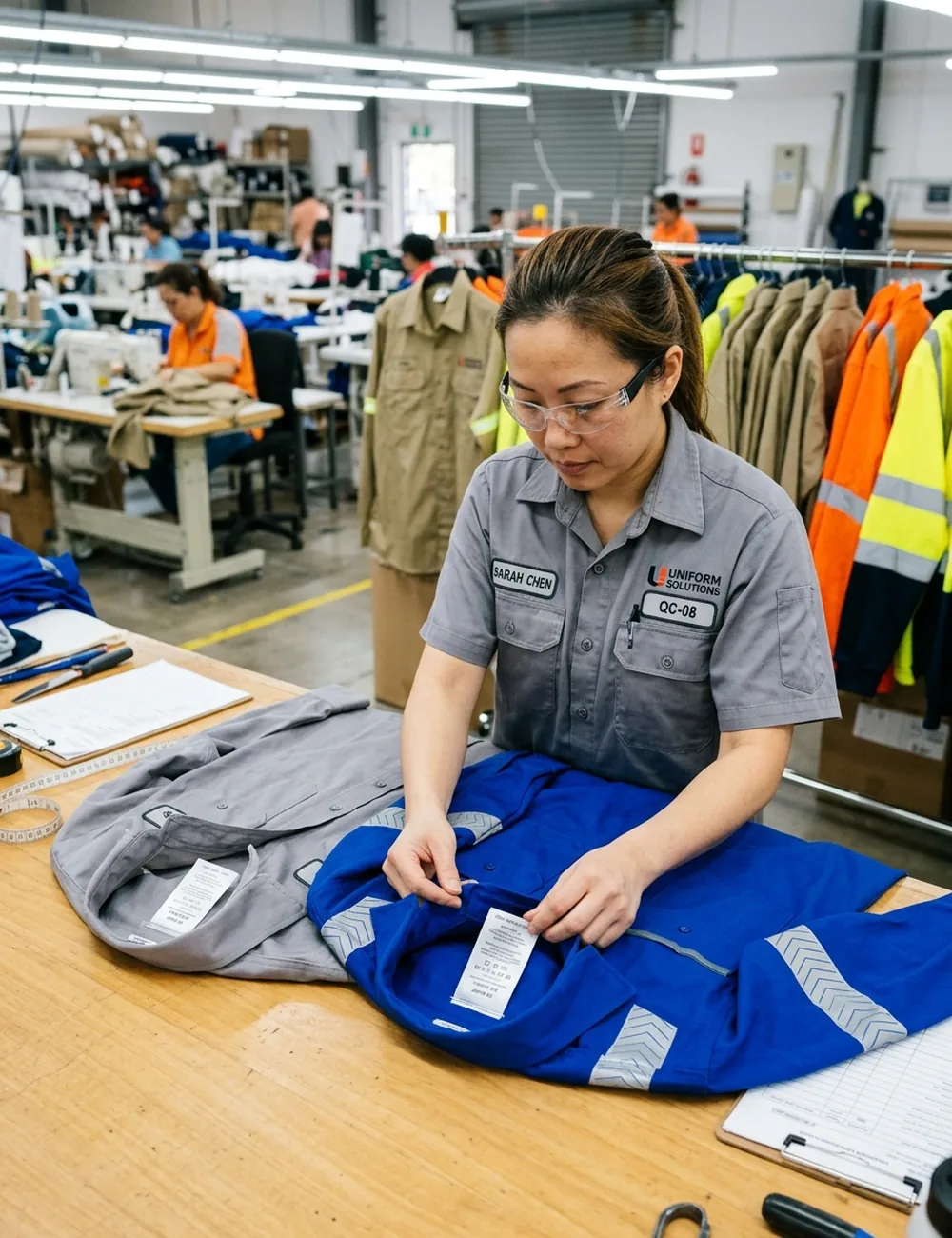

12Inspection
FR Inspection and the Document Pack Your PPE File Needs
Every FR garment is checked against the approved sample, the signed build spec sheet and the signed trim list.
- Fabric lot mill report against the standard and arc rating, before cutting
- Every trim lot against the BOM, before it enters the FR store
- Line clearance signed before the first panel is sewn
- First piece from each line, embroidery machine and heat press
- At 3 inline points: seam thread, zipper, hook-and-loop, snaps and labels against the BOM; logo position, size and material; names against your staff list
- FR hi-vis: tape position and bonding
- Compliance label matches the spec sheet and the garment it is in
- Measurements against the size spec
Final release: AQL 2.5, General Level II, by the QC managerIndustrially laundered programs also need the passed wash test on the decoration (logos).
Mill test reports
For every FR fabric lot in your order.
Signed FR trim list
With each component's report or declaration.
Build spec sheet
Signed, one per style.
Line-clearance record
Signed for your run.
Final AQL report
The release record.
Wash test record
Decoration, with before and after photos.
Carton labels
PO, style, colour, lot; name, size and site for pack-by-person.
Built to the named standard using fabric that carries the mill's test report. Third-party garment testing is arranged per order on request; the test time is quoted and built into the sample plan.
ISO 9001 quality system · amfori BSCI audited · certificates available on request. A component that differs from the signed trim list counts as a defect under the after-delivery terms.
37–50 daysQuote approval to ex-factory, FR fabric in the mill's stock colours
13Supply
Custom FR Builds and FR Private Label, Sample to Re-Order Lead Times
Each FR style is built from its own controlled trim list, so FR comes as custom builds and private label, not stock styles with a logo added. Stock styles with your logo: work shirts.
Custom FR builds for your crews
Your fabric, style, colour, closures, logo and names, with one signed trim list per style.
FR private label
Your neck and compliance labels. One signed trim list per style and per end-customer logo, so a re-order never picks up another customer's parts.
12–15 daysSample or size set
25–35 daysBulk, after sample approval
15–20 daysRe-order on the same spec
QuotedNon-stock colour or third-party test
Open on an FR build, each change made with an FR part, added to the trim list and re-signed:
Fabric and arc ratingStandardColourClosures and pocketsFit, incl. a size set for fit trial on programs of 200+ peopleHi-vis tape layoutLogos and namesLabels
Sea, air or express · EXW, FOB, CIF, DDP · Ask for a sample plan
14Program model
Electrical Utility Contractor: 9 Service Yards, About 800 Line Workers
9Service yards in North America
~800Line and substation workers
Every 6 monthsRe-order
- Wear
- FR shirts, FR pants and FR hi-vis shirts in 8 cal/cm² fabric to ASTM F1506 and NFPA 70E; logo and names in FR thread.
- Set-up
- Three styles, three signed trim lists, signed with the samples by their safety team.
- Runs
- Crew list per yard → names embroidered → packed per person, cartoned per yard.
- Held for them
- Trim lists and spec sheets, logo set-up records, CAD pattern and marker files, retained lab dips, crew lists. Each re-order ships with its mill reports and line-clearance record.
15Quote list
FR Clothing Quote List: Fifteen Items to Send
Copy it into your email, or paste it into the form below.
Standard and rating
- Standard your sites specify
- Arc rating from your hazard assessment
- Documents your PPE approval needs, incl. third-party testing
Garments and fabric
- Garments: shirt, henley, pants, coverall, bib overall, FR hi-vis
- Fabric family, or the fabric name your sites use
- Colour, incl. fluorescent for FR hi-vis
- Closures and pockets
Logo and names
- Logo file: AI, EPS, PDF or high-res PNG (a photo is enough to quote)
- Logo positions, and whether you want employee names
Quantity and packing
- Quantity and approximate size breakdown
- Packing by size or by person; number of sites
- Our labels or your private label
Timing and reference
- Wash routine: home or industrial laundry
- In-hands date and delivery country
- A photo or sample of the FR garment your crews wear today
16Related
Related Uniform Products for FR Programs
Custom safety vests
Non-FR hi-vis vests, and the background-area rule behind every hi-vis logo.
Safety vests
Private label uniforms
For distributors running FR workwear under their own label.
See the product range- Custom coverallsNon-FR coveralls for shop and plant crews.
- Custom work pantsIncluding Class E hi-vis pants.
- Custom work jacketsWork and insulated jackets.
- Embroidery and printingLogo methods across every garment.
- Uniform quality controlThe inspection system across all programs.
Start Your FR Clothing Program
Send the standard and arc rating your sites require, the garments you need and your logo.
- Within 1 business day
- Written quote and sample plan
- With it
- The FR trim list proposed for each style
Or write directly: [email protected] · WhatsApp +86 177 0272 7677
